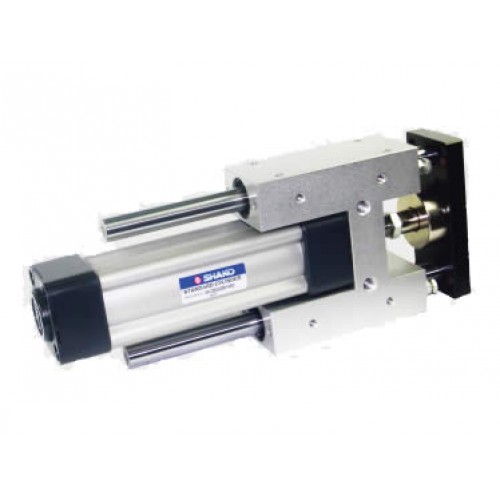

• Guide Cylinder Bush Bearings GCM

Pneumatic Guide Cylinder

Shako GCM-32-40-50-63-80-100

  • Bush bearings for low speed acting and heavy loads.
  • Stroke 50~750mm, bore 32,40,50,63,80 or 100mm.
  • Integration of standard cylinder and two guide rods.
  • Cylinder body connected with guide rod by floating joint, without friction in operation.
  • Two guide rods offer high non-rotating accuracy.
  • Sensor switch and shock absorber are optional accessories.
  • Pressure range 2 to 9 bar, max operating pressure 10.5 bar.
  • Lubrication is not required.
  • Magnet is built in as standard.
  • Piston speed 100 to 500mm per second.
  • Temperature range ambient 0C to +60C.

Write a review

Please login or register to review

Guide Cylinder Bush Bearings GCM

  • Brand: Shako
  • Product Code: GCM
  • Availability: In Stock
  • £242.91


Available Options

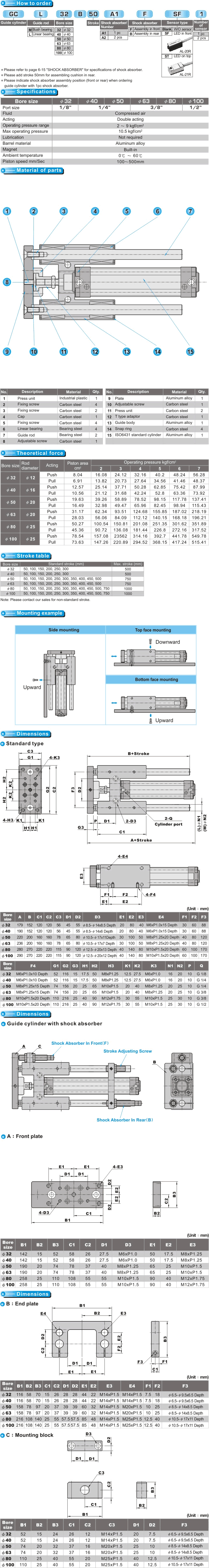

Please Check Shako Data Sheet Tab for options
