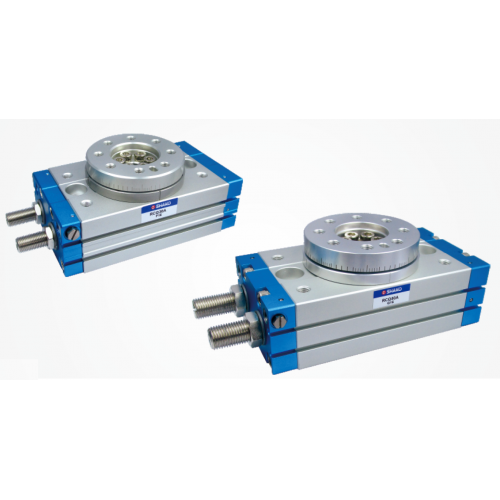

• Rotary Cylinder Angle Adjustable RCQ

Pneumatic Rotary Cylinder

Shako RCQ-30 RCQ50

  • Double Acting pivot gear stoke adjustable or with shock absorber
  • Rotating angle 190 degrees, 0 - 90 or 0- 180 degree rotation
  • Bore 20mm or 25mm
  • Construction aluminium alloy (A6061)
  • Max pressure with stroke adjuster 10 Bar, with shock absorber 6 Bar (Note 1) maximum
  • Minimum operating pressure 1 Bar
  • Cushion rubber cushion or shock absorber
  • Ambient temperature +0C to +60C
  • Note 1: Max operating pressure is limited with allowable thrust of the shock absorber.
  • Note 2: be careful if the piston stroke smaller than effective stroke of the shock absorber, the rotating angle of internal shock absorber sets below the values of the following table, that will result to the energy absorption ability decreased.
Minimum rotating angle
RCQ30
RCQ50
To keep energy absorption ability
40 degrees
60 degrees

Write a review

Please login or register to review

Rotary Cylinder Angle Adjustable RCQ

  • Brand: Shako
  • Product Code: RCQ
  • Availability: In Stock
  • £212.66


Available Options

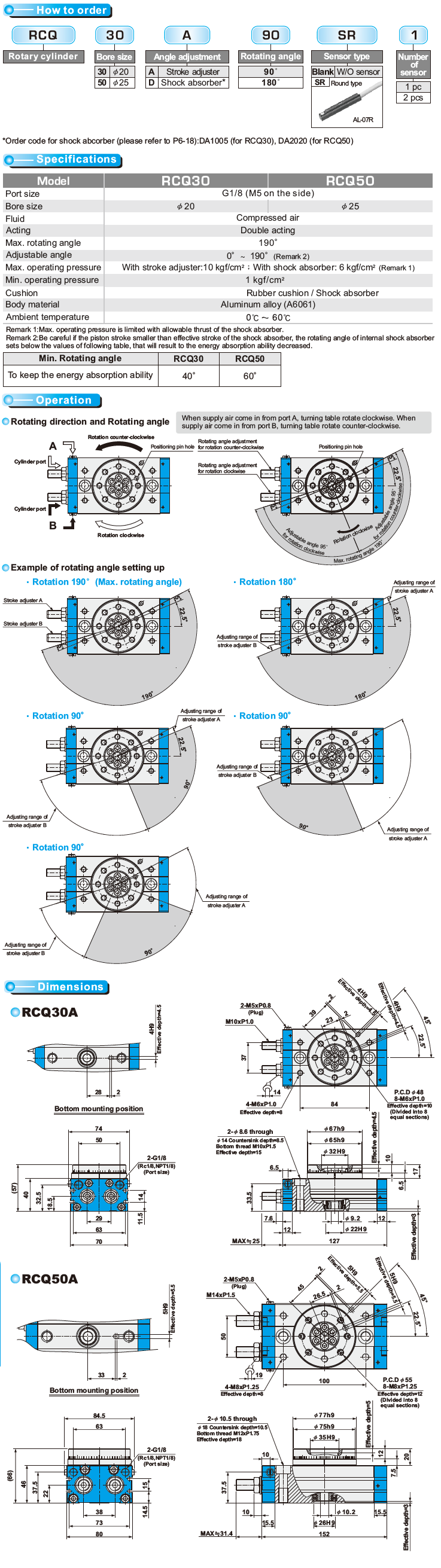

Please Check Shako Data Sheet Tab for options
