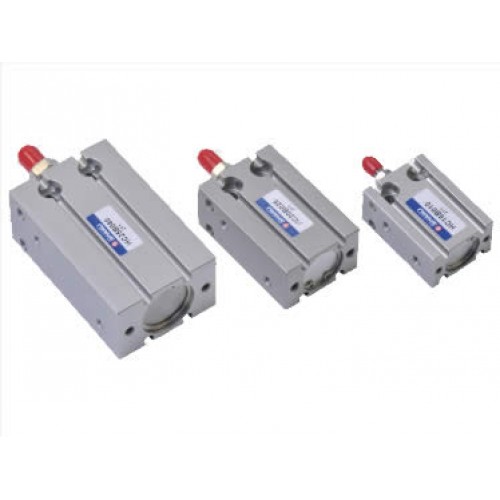

Free Mounted Pneumatic Cylinder
Shako HC-10-16-20-25
- Compact air cylinder
- Bore 10, 16, 20 or 25mm, stroke 5,10,15 or 20mm.
- Hard anodized aluminium barrel provides corrosion and wear resistance as well as long life.
- Compact size and space saving.
- Strict quality control ensures the product in stability and excellent performance.
- Simple maintenance and installation.
- Option for magnet and single or double round or square sensors.
- Double acting.
- Pressure 1 to 8 bar, proof pressure 10 bar.
- Temperature range ambient -5C to +60C.
- Piston speed 50 - 700 mm/sec.
Double Acting Free Mounted Cylinder HC
- Brand: Shako
- Product Code: HC
- Availability: In Stock
-
£12.29
Available Options
Please Check Shako Data Sheet Tab for options
