• Shako Rodless Pneumatic Cylinder ZS ZF ZK

Rodless Pneumatic Cylinder

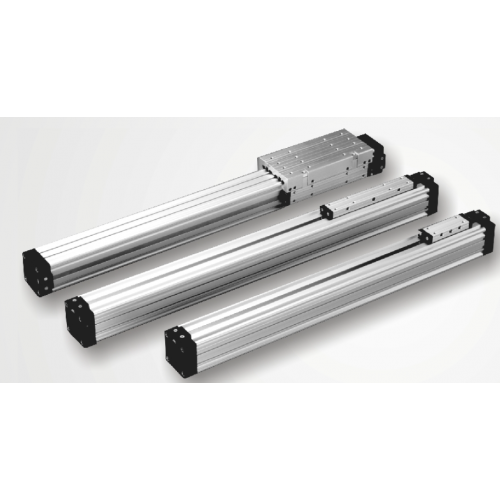

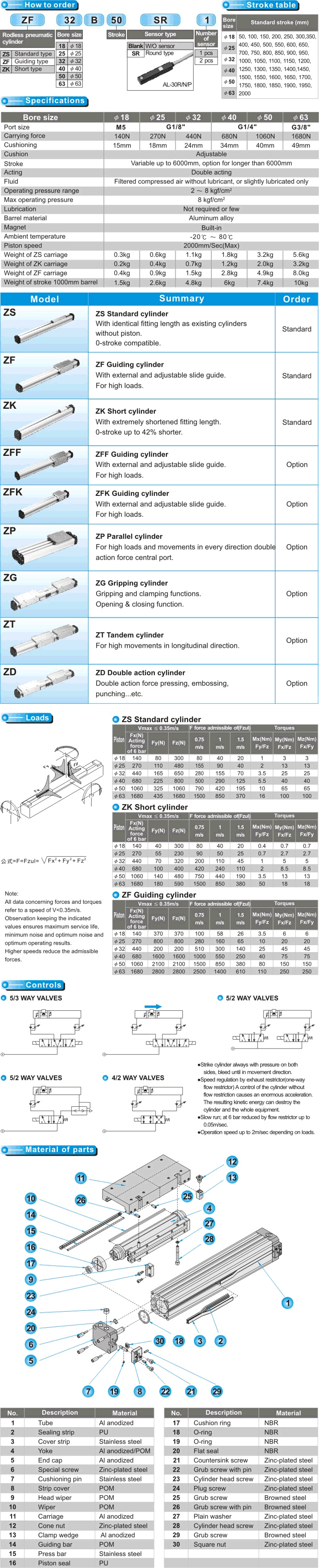

Shako ZS-18-25-32-40-50-63 Standard type

ZF-18-25-32-40-50-63 Guide type

ZK-18-25-32-40-50-63 Short type

ZS Cylinder :

  • High-strength aluminium extruded section to reduce deflection and increase the slot width.
  • Front and side wipers on the yoke.
  • Grooves in tube profile for fixing various additional components.
  • Fixation at the front can be turned by 4 x 90°.
  • New pin type cushioning.
  • Large clamping surface on the yoke.
  • Guiding over the entire stroke length.
  • One-side connections possible.
  • Torsion-proof.
  • Exchangeable wear parts.
  • High section modulus in all load directions.
  • Adjustable slide guides save additional guiding systems.
  • Carriage can be installed at a later date.

ZF Cylinder :

  • Accuracy and high loading capacity.
  • The cylinder provides V-guide grooves on outer side which support the guide carriage by means of slide bars, the guide carriage is fitted to the sides of the cylinder tube, which means that the increase of the sloth width has no influence and can almost be adjusted without backlash.
  • As the guide grooves are integrated into the cylinder tube,the generally complicated and expensive installation of additional guide profiles is eliminated.
  • The adjustable slide bars are made of high-strength plastic. In combination with the anodized surface of the cylinder, these plastic gibes ensure a very favourable sliding effect.
  • Exceptionally compact and space saving.
  • Suitable for lower end supports, centre supports, solenoid switch systems.
  • Utilizing cross supports, two guiding cylinders can be connected to form portal support systems with infinitely chosen stroke, which is applicable to variety of applications.
  • Provide highly versatile linear drive element which allows all designers and machine makers to implement future-oriented concepts at reasonable prices.

ZK Cylinder :

  • Basic length (0-stroke) up to 42% shorter.
  • Space-saving also in comparison to short-stroke standard cylinders with piston rod.
  • Shorter total fitting length.
  • Money-saving compact construction.
  • ZS ZF and ZK Cylinders can be made to any length i.e. ZK18B370 370mm stroke price same as next stroke size up which would be 400mm.
