• Shako Vacuum Generator Valve VV

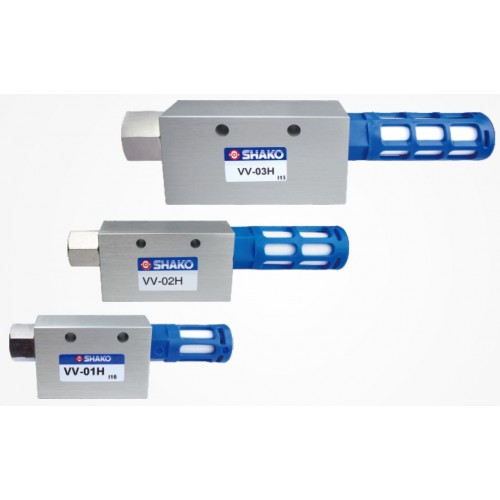

Vacuum Generator Valve

Shako VV-01-02-03H

  • Port sizes 1/8, 1/4, 3/8" BSP, NPT or Rc thread.
  • Compact inline venturi vacuum generator / ejector valve with silencer
  • Vacuum generation to -91.8Kpa (-0.918 Bar).
  • Supply air pressure 5 Bar, working pressure 0.1 to 6 Bar.
  • Construction strong lightweight aluminium alloy.
  • Nozzle diameter 1/8" 1.0mm, 1/4" 1.5mm and 3/8" 2.0mm
  • Air consumption L/min 1/8" 50, 1/4" 120 and 3/8" 210 L/Min.
  • Temperature range 0C to +60C.


Write a review

Please login or register to review

Shako Vacuum Generator Valve VV

  • Brand: Shako
  • Product Code: VV
  • Availability: In Stock
  • £16.62


Available Options

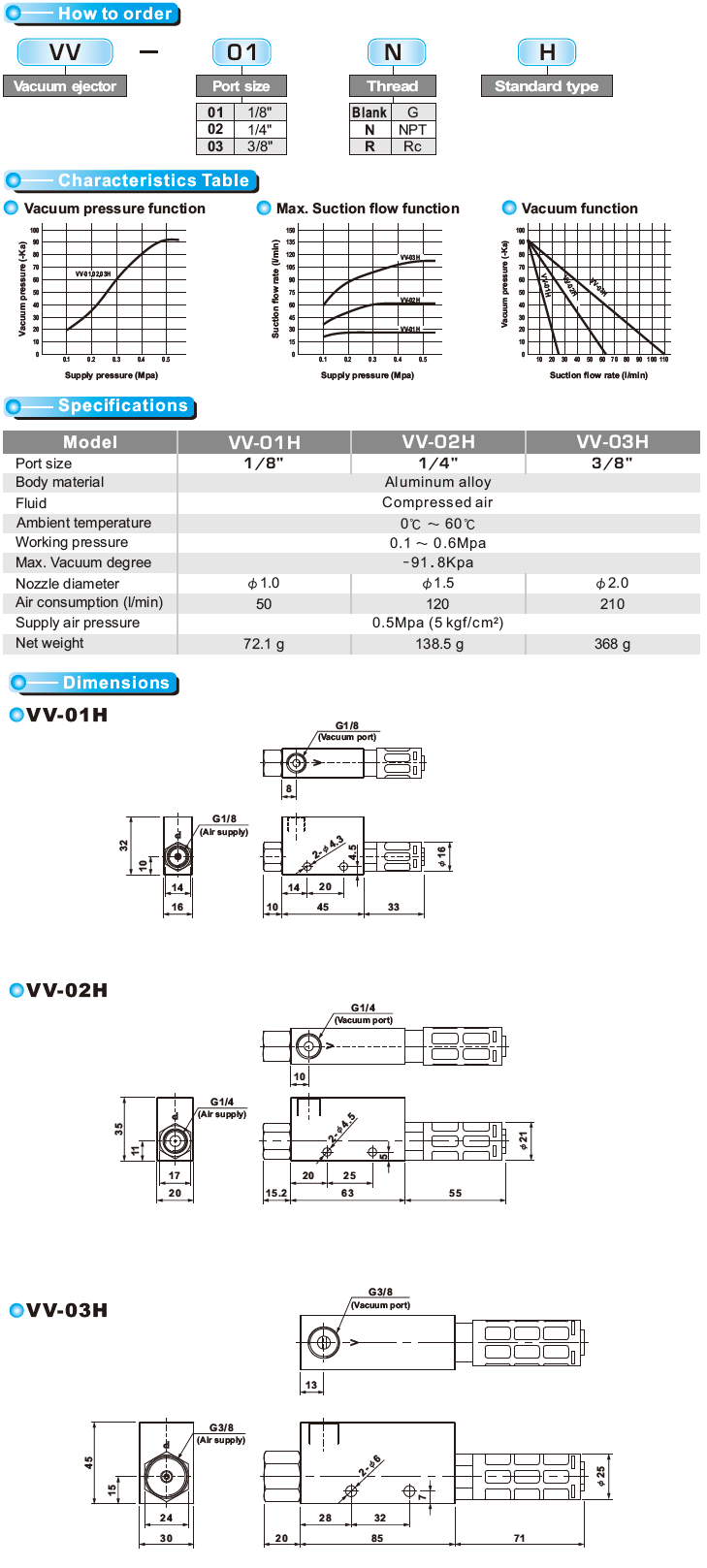

Please Check Shako Data Sheet Tab for options
