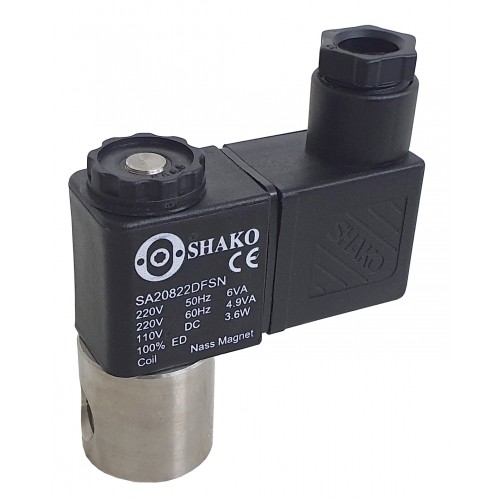

Miniature Solenoid Valve 2/2 Way
Shako HA1
- 1/8" BSP or NPT thread
- Viton seals, option NBR or EPDM sealing.
- 2/2 way normally closed quick response.
- Pressure AC 0 to 15 bar / DC 0 to 10 Bar depending on orifice, pressure tested to 15 bar.
- Direct acting.
- Compact miniature 2 way solenoid valve.
- Most voltages available.
- Temperature media -10C to +120C, ambient -10C to +50C.
- Coil class F, DIN43650B or flying lead wire 100% duty rated, option ATEX EExmIIT4 coil.
- AISI303 body with stainless steel internals extend valve valve.
- Viton seals fuel oil, gasoline, hi-test gasoline, diesel fuel - NBR seals suited for air, water, neutral gases and mineral oils - EPDM hot water and liquid detergents.
Shako 2/2 Solenoid Valve HA1
- Brand: Shako
- Product Code: HA1
- Availability: In Stock
-
£29.57
Available Options

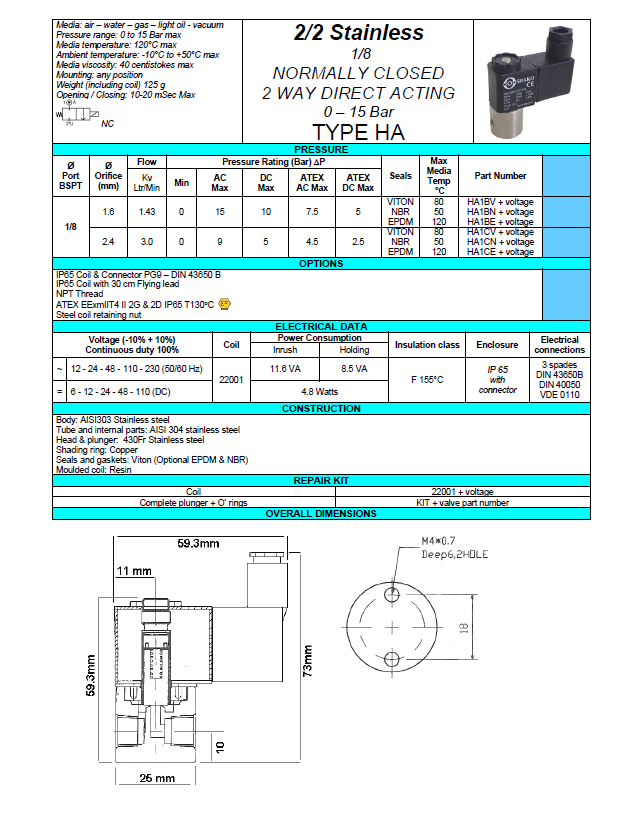

Please Check Shako Data Sheet Tab for options
