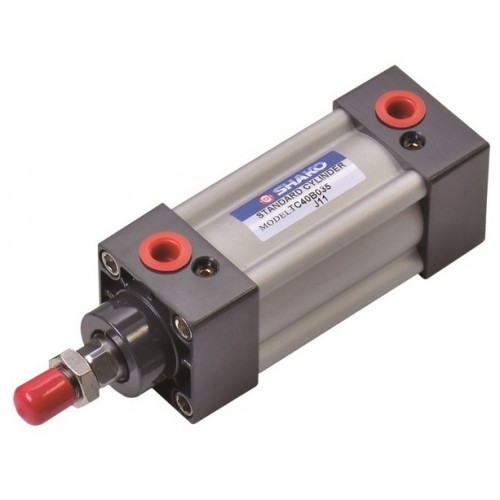

• Double Acting 100mm ISO6430 standard cylinder TC100

ISO6430 Pneumatic Cylinder

Shako TC-100

  • ISO6430 standard cylinder.
  • Double acting.
  • Bore 100mm
  • Stroke 25mm to 1000mm
  • Stroke 25mm to 1000mm
  • High quality of aluminium tube provides a long service life.
  • High quality of seals ensures leakage free.
  • Various sensors with LED are available option.
  • With adjustable cushions on both ends.
  • Mounting foot, front flange, rear flange, male single clevis or female double clevis.
  • Rod ends single clevis / knuckle or double clevis / knuckle.
  • Cushion is built in.
  • Magnet is included if sensors required.
  • Pressure range 1.5 to 9.5 bar (150 Mpa to 950 Mpa).
  • Temperature range ambient -5C to +60C.
  • Piston speed 50 to 700 mm per second.


Write a review

Please login or register to review

Double Acting 100mm ISO6430 standard cylinder TC100

  • Brand: Shako
  • Product Code: TC-100
  • Availability: In Stock
  • £104.31


Available Options

Please Check Shako Data Sheet Tab for options
