• Double Acting 32mm ISO6432 Miniature Cylinder boss cut PCCL32

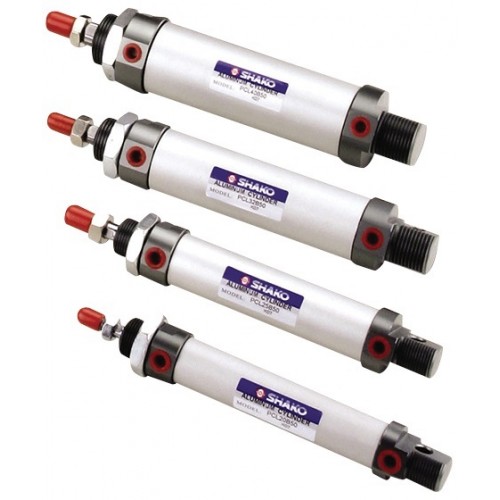

Miniature Air Cylinder 32mm

Shako PCCL-32

  • Conforms to ISO6432 standard boss cut.
  • Double acting.
  • Bore size 32mm
  • Stroke 25mm to 500mm
  • Mounting boss cut.
  • Rod end joint double knuckle joint, single knuckle joint, eyeball floating joint, basic floating joint, axial foot type floating joint or flange type floating joint.
  • Optional Magnet and sensors with LED.
  • Miniature size and space saving.
  • Port 1/8"
  • Pressure range 1.5 to 8.5 bar, maximum operating pressure 9.5 bar.
  • Temperature range ambient -5C to +60C.
  • Piston speed 50 to 700mm per second.


Write a review

Please login or register to review

Double Acting 32mm ISO6432 Miniature Cylinder boss cut PCCL32

  • Brand: Shako
  • Product Code: PCCL-32
  • Availability: In Stock
  • £22.55


Available Options

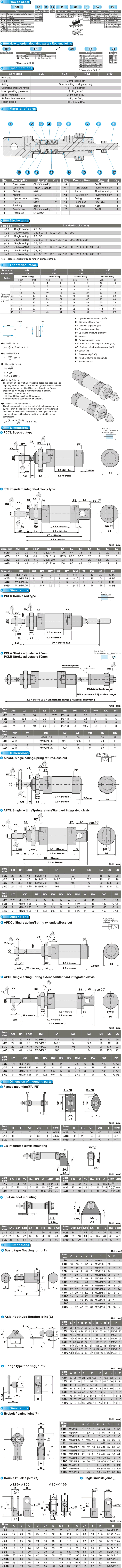

Please Check Shako Data Sheet Tab for options
