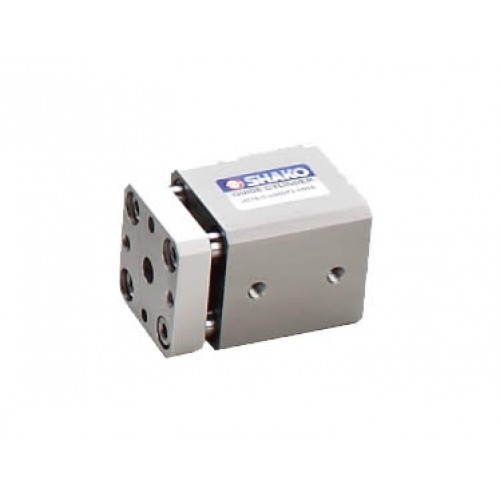

4 Guide Rod Pneumatic Cylinder

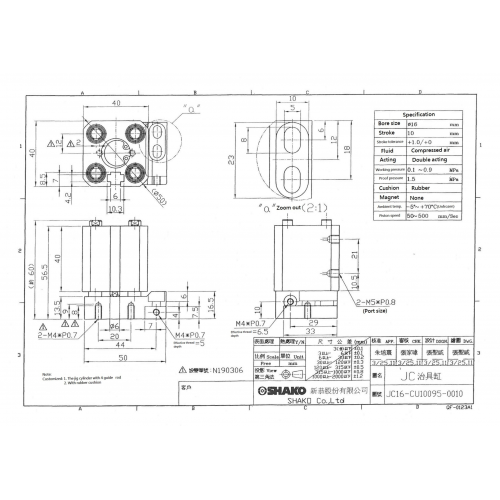

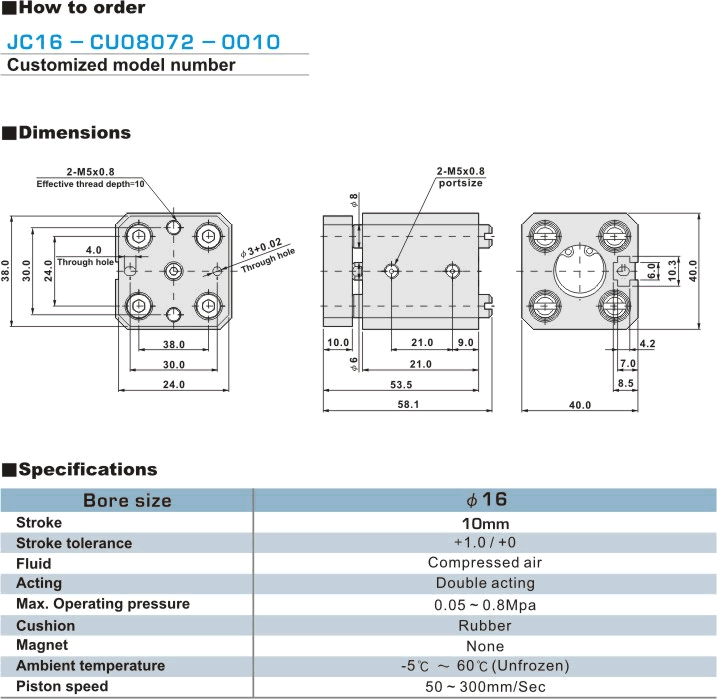

Shako JC16-CU10095.0010 (formerly JC-CU08072-0010)

  • Hard anodized aluminium body provides corrosion and wear resistance.
  • Non-rotated.
  • Low deviation.
  • Stroke 10mm
  • Stroke tolerance +/- 1mm
  • Double acting with rubber cushion.
  • Pressure 0.5 to 0.8 bar.
  • Temperature range -5C to +60C maximum (without freezing)
  • Stroke speed 50 to 300mm per second.
  • Compact cylinder.


Write a review

Please login or register to review

Shako 4 Guide Rod Compact Cylinder JC

  • Brand: Shako
  • Product Code: JC16-CU10095.0010
  • Availability: In Stock
  • £44.02
