• Electronic Proportional Regulator

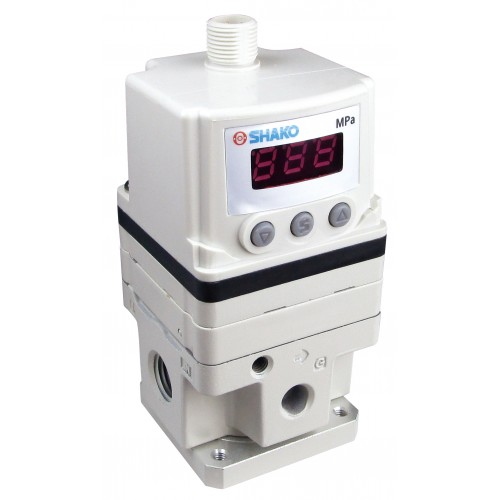

Proportional air pressure regulator Shako iRP2

Pressure: 0.005 to 0.1 Mpa, 0.005 to 0.5 Mpa or 0.005 to 0.9 Mpa

Port sizes: 1/8, 1/4 or 3/8 Rc thread

Input signal: 0 to 5 vDC or 0 to 10vDC

Output signal: with or without Analogue 0 to 10vDC or 1 to 5vDC

Body: Aluminium alloy

Accuracy: linearity: +/- 1.0% F.S, Repeatability: +/- 0.5% F.S., Hysteresis 0.5% F.S.

Sensitivity: below 0.2% F.S.

Ambient Temperature: 0 to +50C

Protection: IP65

Insulation class: F

Supplied with 4 PIN Connector and cable

Application:

Electronic proportional pressure regulator is widely used in different equipment as following examples:


Sensitive pressure control.
Gripping force control for robot arm.
Tension control for paper or tape rolling machine.
Pressure and force control for pneumatic press.
Air brake pressure control.
Welding gun pressurised control.
Pressure control for coating process.


Write a review

Please login or register to review

Electronic Proportional Regulator

  • Brand: Shako
  • Product Code: iRP2
  • Availability: 2-3 Days
  • £291.50


Available Options

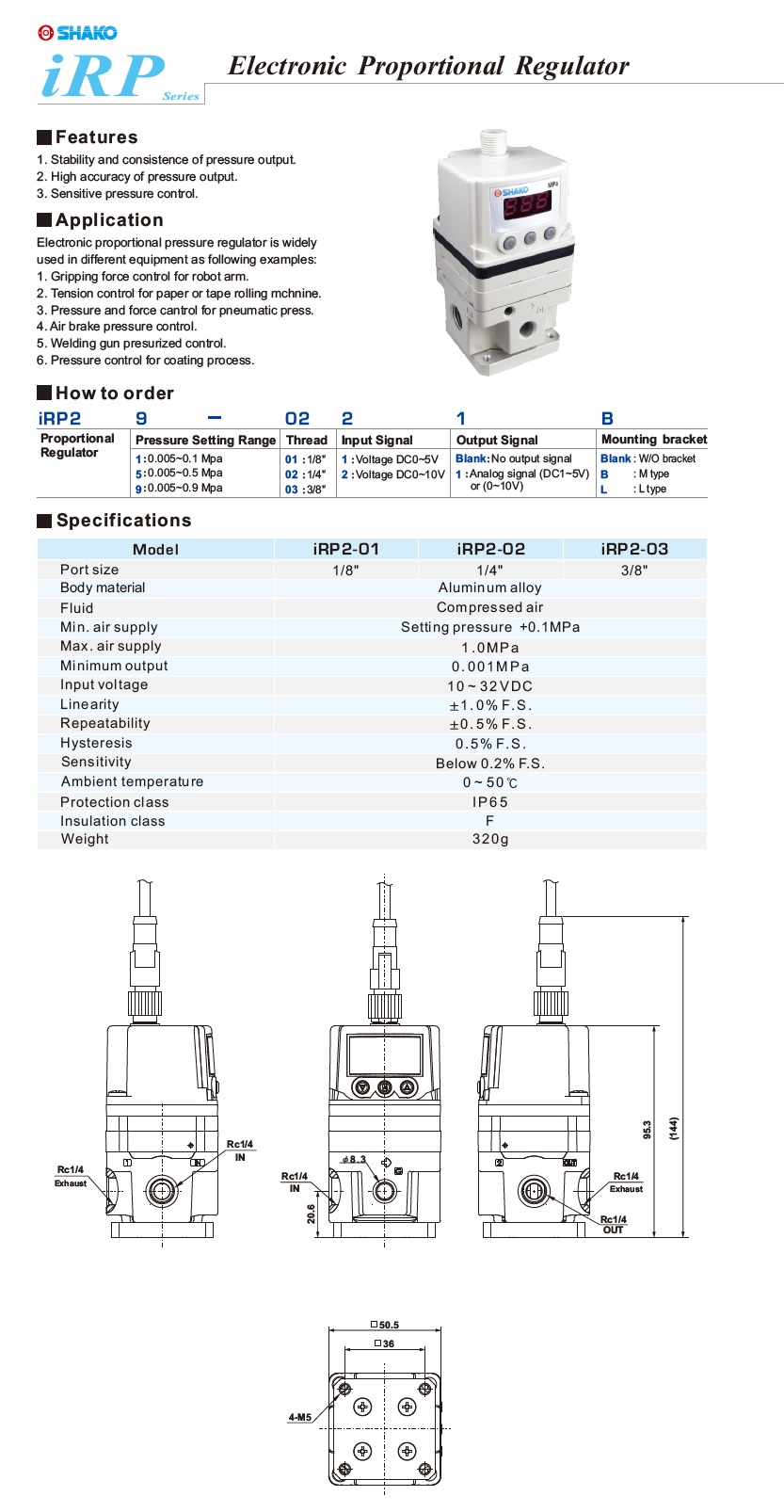

Please Check Shako Data Sheet Tab for options
