Precision Air Regulator

Shako URP-02 URPL4-02 URPL2-02.

  • Pressure URP 0.1~8 Bar, URPL2 0.05~2 bar, URPL4 0.1~4 bar, test pressure 10 bar.

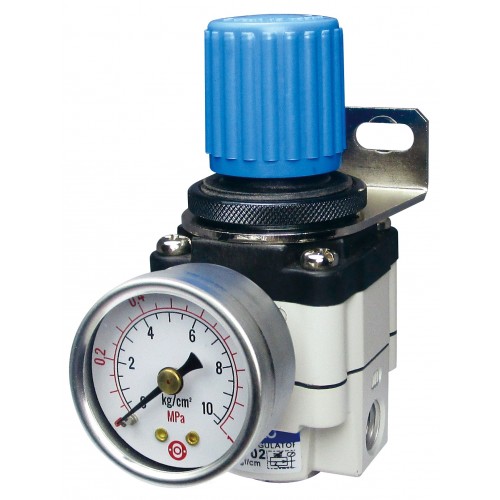

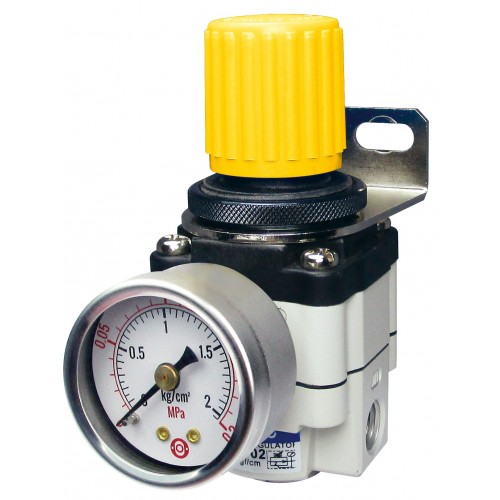

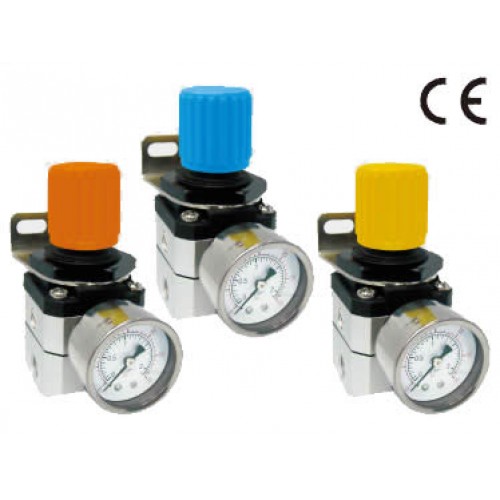

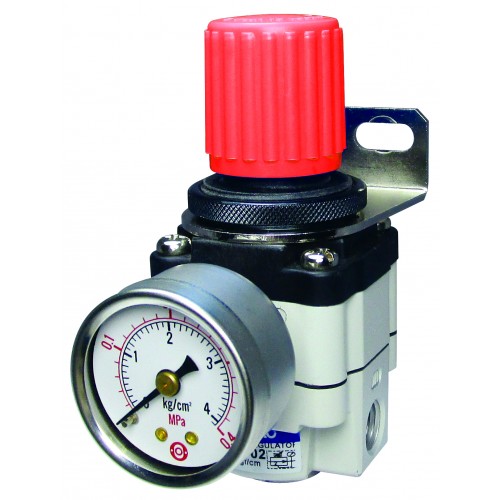

  • Knob Colours, Blue 0.1~8 bar, Orange 0.1~4 bar and Yellow 0.05~2 bar.
  • Port 1/4" BSP, NPT or Rc thread.
  • Constant and stable fluid pressure control, smallest influence for outlet pressure while inlet pressure is unstable.
  • Precision diaphragm pressure setting, sensitivity within ±0.5% F.S., sensitivity 0.2% (F.S.)
  • Suitable for high precision tension control, balanced air pressure application, sensitivity 0.2% (F.S.), repeatability +/-0.5% (F.S.)
  • Supplied with mounting bracket, pressure gauge, plug and panel mounting nut.
  • Accessories Plug, panel mounting nut (included), optional mounting bracket and pressure gauge.
  • Temperature range ambient -5C to +60C.


Write a review

Please login or register to review

Shako Precision Regulator URP

  • Brand: Shako
  • Product Code: URP URPL
  • Availability: In Stock
  • £65.26


Available Options

Please Check Shako Data Sheet Tab for options
