• Shako pilot check & speed control valve VCP

Pilot check valve c/w Speed control

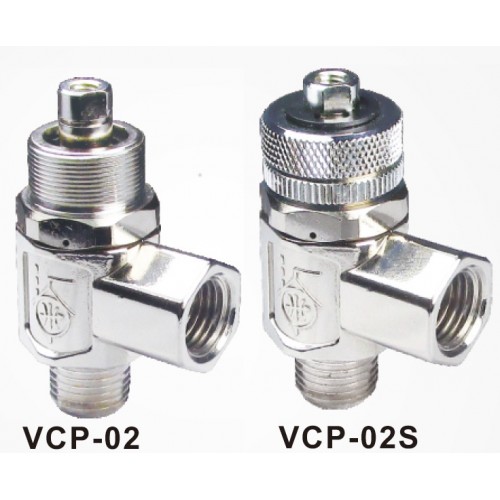

Shako VCP-02 & 02S

  • Port 1/4" BSP, NPT or Rc thread.
  • VCP-02 Pilot check valve and VCP-02S combined Pilot check and precise speed control valve.
  • Speed control valve can be fitted directly onto cylinder port to increase stability of cylinder speed control which is different from cylinder speed from solenoid control side.
  • Zinc alloy body
  • Sectional area 14mm2
  • Operating pressure 1 to 10 Bar
  • Proof test pressure 15 Bar.
  • Pilot pressure 50% of operating pressure (minimum: over 1 Bar)
  • Temperature range ambient -5C to +60C.

Write a review

Please login or register to review

Shako pilot check & speed control valve VCP

  • Brand: Shako
  • Product Code: VCP
  • Availability: In Stock
  • £23.38

Available Options

Please Check Shako Data Sheet Tab for options
