Hand Control Valve 3/2 Way

Shako MSV8622-32-42-62

  • 3/2 way hand control air valve
  • Pressure 0~9 bar, 10 bar maximum.
  • Port size 1/8" BSP or NPT thread.

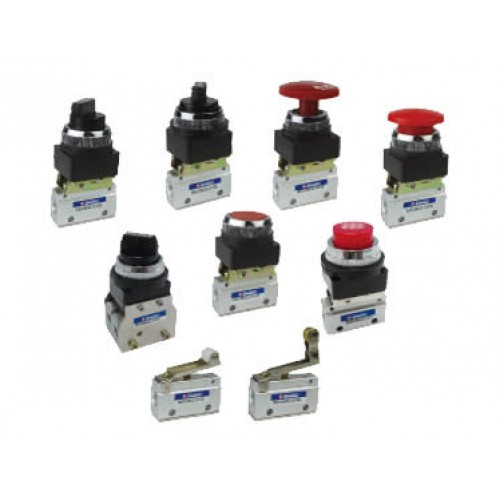

  • Operators, Roller, one way roller, twist selector, long twist selector, palm button mushroom, palm button flush, palm button extended or stop cock button.
  • Standard button colours Black TB and LB, Red PB, PP, PPL, EB, other colours include Green, Black, Yellow.
  • To be installed in moving devices like air cylinder, slide...etc.
  • Various operating styles, single, stack, single with exhaust port or stack with exhaust port.
  • Panel bore size φ30 (Option φ25).
  • Temperature range ambient -10C to +60C.
  • MSV8622 single, MSV8642 Stack, MSV8632 Single with exhaust port, MSV8662 stack with exhaust port.


Write a review

Please login or register to review

Shako 3/2 Hand Control Valve MSV8632

  • Brand: Shako
  • Product Code: MSV8632 MSV8642 MSV8622 MSV8662
  • Availability: In Stock
  • £18.51


Available Options

Please Check Shako Data Sheet Tab for options
