• Shako 5/2 Mechanical valve MSV40152

Mechanical valve 5/2 Way

Shako MSV40152-01

  • 5/2 way mechanical air valve
  • Port 1/8" BSP, NPT or Rc thread.
  • Pressure range 0 to 9 bar, 10 bar maximum, air pilot pressure 3.5 to 7 bar.

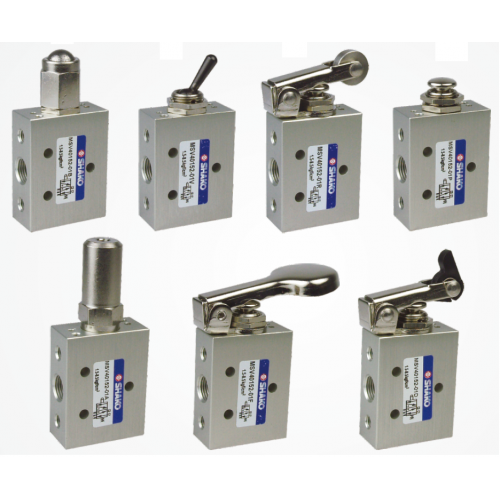

  • Various operators, toggle lever, roller, push button, one way roller, ball plunger, air pilot or finger button.
  • Panel bore size φ12.
  • Temperature range ambient -10C to +60C.
  • World leading design protected by worldwide patents, 401P China ZL200530157288.5 and 401V China ZL200530157287.0


Write a review

Please login or register to review

Shako 5/2 Mechanical valve MSV40152

  • Brand: Shako
  • Product Code: MSV40152
  • Availability: In Stock
  • £17.88


Available Options

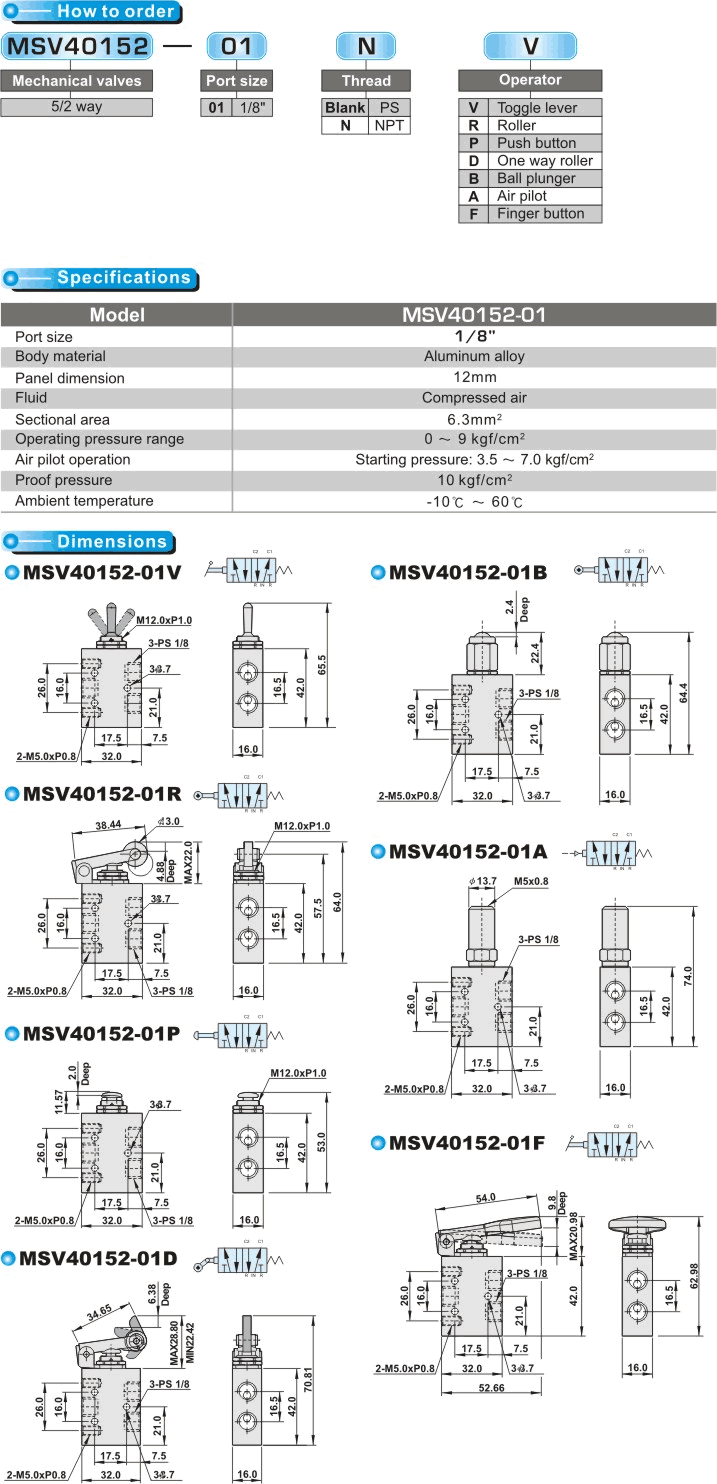

Please Check Shako Data Sheet Tab for options
