• Shako 5/2 5/3 Pilot Solenoid Valve SM520 SM530

Pilot Solenoid Valve 5/2 5/3 Way

Shako SM520-01-S(D) SM530-01-D MF52S-01

  • 5/2 way single or double acting or 5/3 way.
  • Port size 1/8" BSP or NPT thread.
  • Medium and compact size, 18mm width solenoid valve with internal pilot.
  • Pressure 1.5 to 8 bar, pressure tested 10 bar.
  • Manual override design for easy test and operation.
  • Anodized aluminium body and strict quality control provide a long durability.
  • Valve can be sub base manifold mounted 2 to 10 stations, mix 5/2 and 5/3 way valves.
  • Coil Class F IP65 100% duty rated DIN43650 or flying lead, optional ATEX EEx m II T4 22 or 30mm width, CSA Certified 36mm width.
  • Temperature -10C to +50C.
  • The mounting position is identical to the counter product from SMC.


Write a review

Please login or register to review

Shako 5/2 5/3 Pilot Solenoid Valve SM520 SM530

  • Brand: Shako
  • Product Code: SM520 SM530
  • Availability: In Stock
  • £3.63


Available Options

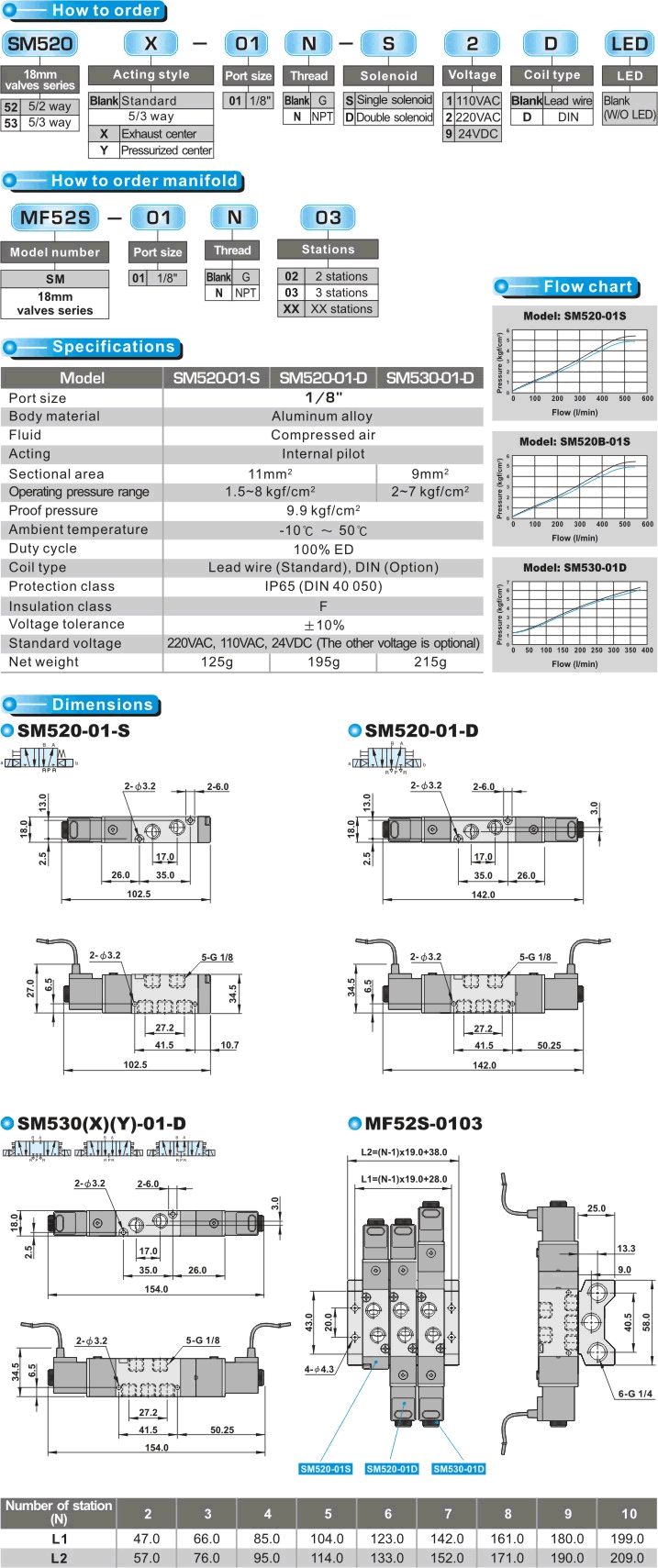

Please Check Shako Data Sheet Tab for options
