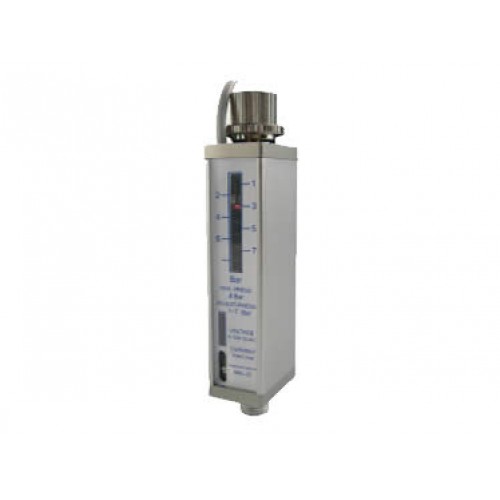

• Shako Pressure Switch MAL-07

Pressure Switch

Shako MAL-07

  • Port 1/8" BSP, NPT or Rc thread.
  • Pressure range 1.02 to 7.14 bar, stable pressure setting, max pressure 10 bar
  • Pressure setting: Standard OFF when pressure drop to set pressure LED is OFF
  • Pressure setting option: ON (L) when pressure rise to set pressure LED is ON.
  • Repeatability +/- 0.15 Bar
  • Temperature range: -5 to +60C
  • Compact size for simple installation,
  • Easy operation and safe.
  • Voltage range: 5 to 120vDC or AC, c/w AL07R cable 1000mm
  • Max current: 100 milliamp
  • Max contact rating: 10 Watt or 10VA
  • Sensor voltage range 5~120 volts AC or DC

Write a review

Please login or register to review

Shako Pressure Switch MAL-07

  • Product Code: mal-07
  • Availability: In Stock
  • £27.83

Available Options

Please Check Shako Data Sheet Tab for options
