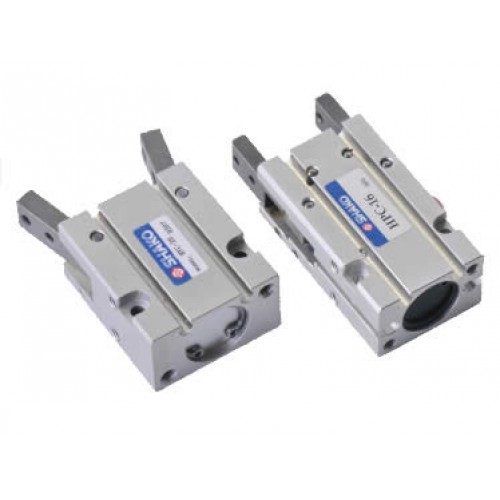

• Mini Chuck HYC HPC

Pneumatic Chuck

Shako HYC-10-16-20-25-32 HPC-10-16-20-25-32

  • Double acting pneumatic gripper open and close controlled by compressed air system.
  • Miniature compact design, space saving.
  • Single or double round or square sensor installation options.
  • Parallel or Fulcrum mini chuck gripper
  • Bore size/Grip force: 10mm 5N, 16mm 17.6N, 20mm 34.3N, 25mm 58.8N or 32mm 83.3N
  • operating frequency: 50 to 700 mm per second.
  • Pressure range: 1.5 to 7 bar, 10.5 Bar maximum.
  • Lubrication not required.
  • Body material aluminium alloy.
  • Magnet is built in as standard.
  • Temperature range ambient 0C to +60C.

Write a review

Please login or register to review

Mini Chuck HYC HPC

  • Brand: Shako
  • Product Code: HYC HPC
  • Availability: In Stock
  • £88.45

Available Options

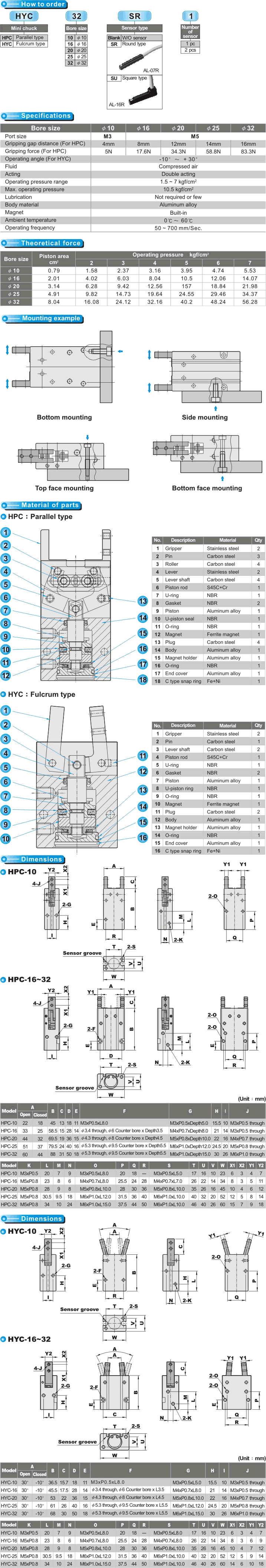

Please Check Shako Data Sheet Tab for options
