• Mini Chuck HPS HYS

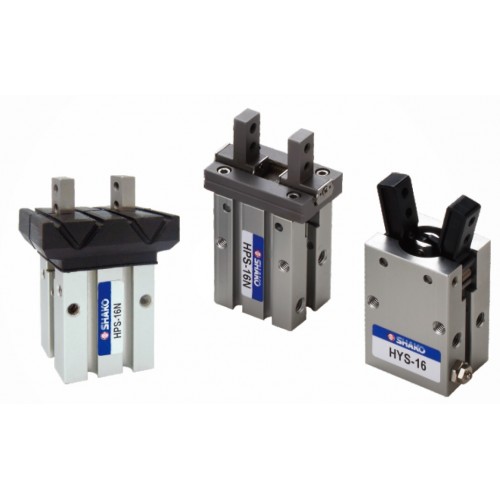

Pneumatic Mini Chuck

Shako HPS-10-16-20-25 HYS-10-16-20-25

  • 10, 16, 20 and 25mm mini chuck.
  • Precision and no vibration with strong endurable mechanism.
  • SUS440C gripper provides a long life of product.
  • Aluminium alloy body with hard anodizing for wear and corrosion resistance.
  • Bore/ grip force (HPS) 10mm 10.5 to 16.5N, 16mm 33 to 44N, 20mm 42 to 65.5N or 25mm 63.5 to 102N
  • Pressure range fulcrum 1 to 6.1 bar, parallel 1 to 7 bar, maximum pressure 7 bar.
  • Lubrication not required.
  • Material Gripper stainless steel parallel, S45C steel fulcrum, body aluminium alloy 6061T6
  • Magnet built in.
  • Temperature ambient 0C to +60C.
  • Operating frequency Fulcrum (HYS) 180 per minute, parallel (HPS) 160 per minute.
  • Operating angle HYS fulcrum -10 to +30 degrees.
  • Identical to SMC mounting hole.

Write a review

Please login or register to review

Mini Chuck HPS HYS

  • Brand: Shako
  • Product Code: HPS HYS
  • Availability: In Stock
  • £38.12

Available Options

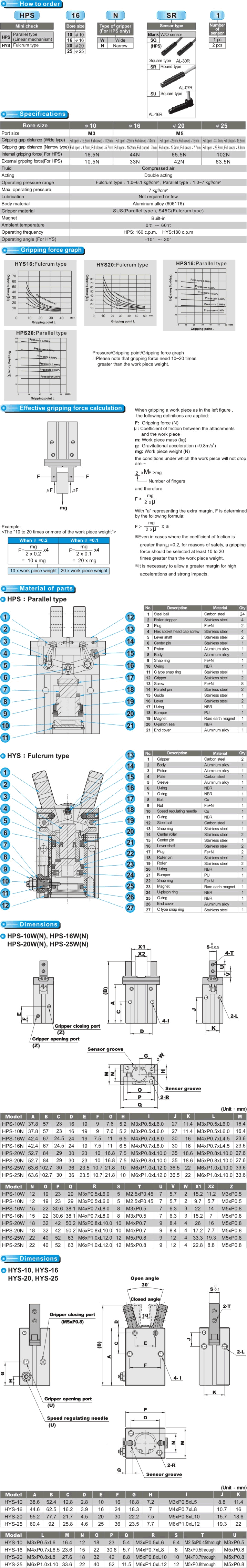

Please Check Shako Data Sheet Tab for options
