Miniature FRL Combination
Shako FRL700C-01-02 FRL600C-01-02
- 700C F+R+L, 600C F/R+L
- Port sizes 1/8" or 1/4" BSP, NPT or Rc thread.
- 40μm and 5μm PE or sintered bronze filter element are easily interchangeable and replaceable.
- Pressure range 0.5 to 10 bar, pressure tested 12 bar.
- Drain is semi automatic as standard, optional manual drain available.
- Remove water and particle very effectively.
- Compact size with effective air service.
- Accurate and easy pressure setting.
- Oil spray in mist ensures good lubrication for machines.
- Square integral pressure gauge, optional round gauge.
- Temperature range -10C to +60C.
- Polycarbonate Filter bowl capacity 40cc, lubricator bowl 50cc.
- Accessories pressure gauge, mounting bracket, plug and 2x screws (included).
- Option additional panel mounting nut NUS0000290

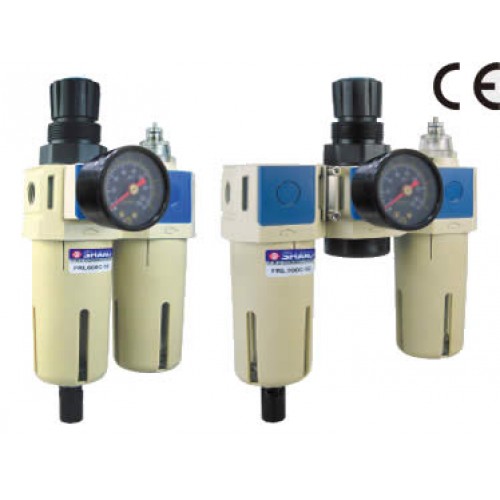

Shako Miniature FRL700C(600C)
- Brand: Shako
- Product Code: FRL700C FRL600C
- Availability: In Stock
-
£43.56
Available Options
Please Check Shako Data Sheet Tab for options
