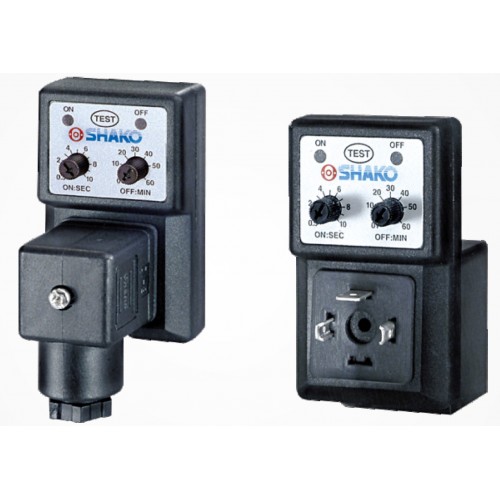

• Shako Cyclic Timer

Repeat Cycle Valve Timer.

Shako Z10100 and Z10101

  • Solenoid valve timer / controller DIN 43650A (Z10100) or DIN43650B (Z10101).
  • Selectable timing range ON 0.5~10 Seconds and OFF 0.5~60 Minutes.
  • Voltage 24~240 volts AC or DC.
  • DIN43650A or B, ISO4400/6952 IP65 NEMA 4.
  • Fits directly onto solenoid valve between coil and electrical connector.
  • Perfect for auto drain of condensate, effluent sampling or pneumatic vibration.
  • Current consumption 4mAmp Max.
  • Temperature range ambient -10C to +50C.
  • Switch holding voltage 400 volts
  • Duty cycle 100%.
  • Switch life 300,000,000 cycles.
  • Repeat accuracy +/- 1%.
  • Scale accuracy +/- 10%
  • Rest / test manual switch.
  • LED indicator to show phases.
  • Design standard VDE0100C


Write a review

Please login or register to review

Shako Cyclic Timer

  • Brand: Shako
  • Product Code: Z10100 Z10101
  • Availability: In Stock
  • £40.33


Available Options

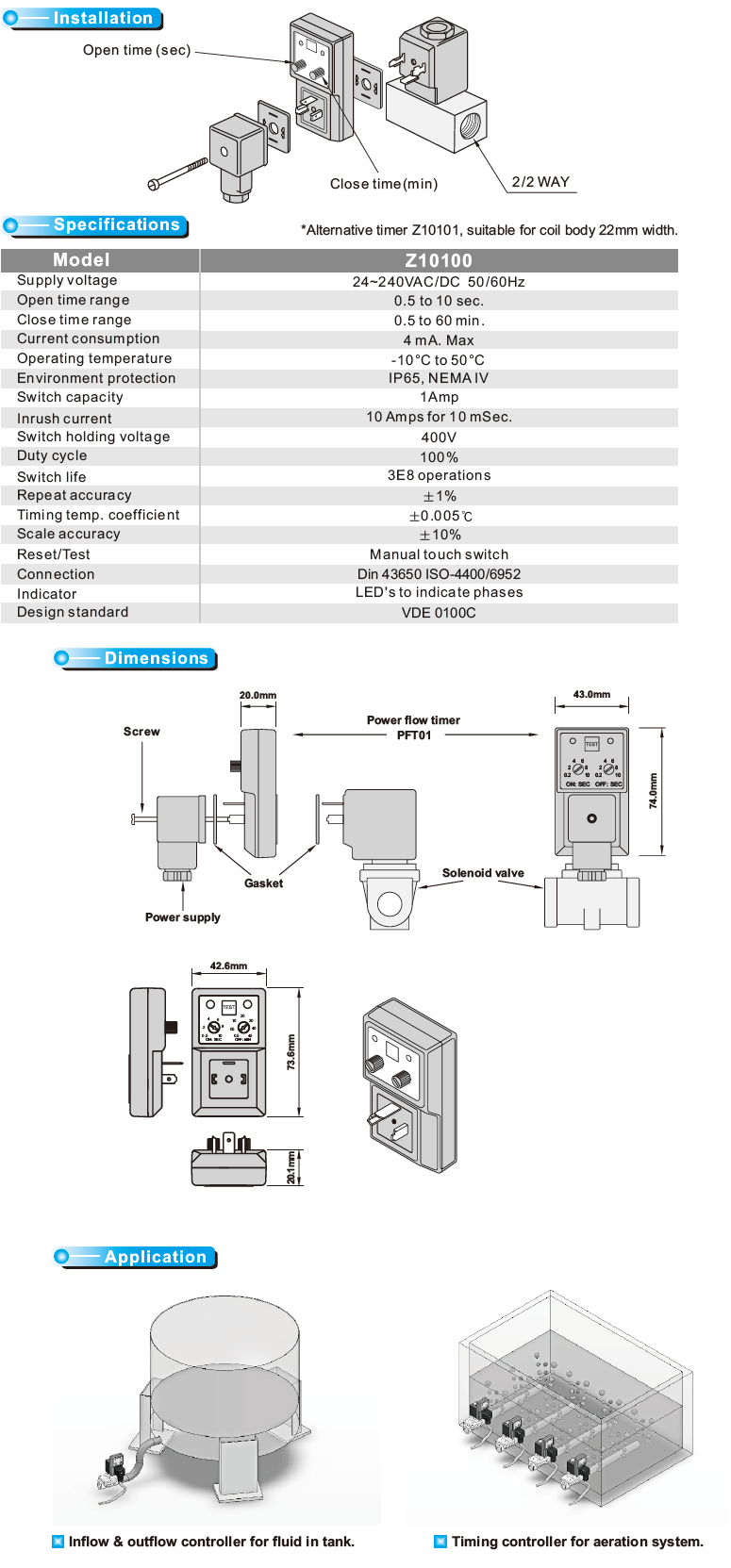

Please Check Shako Data Sheet Tab for options
