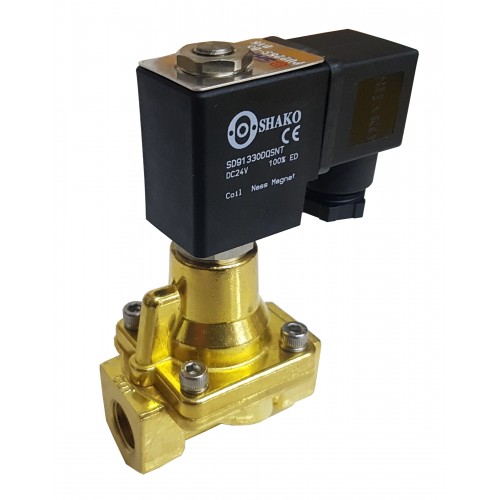

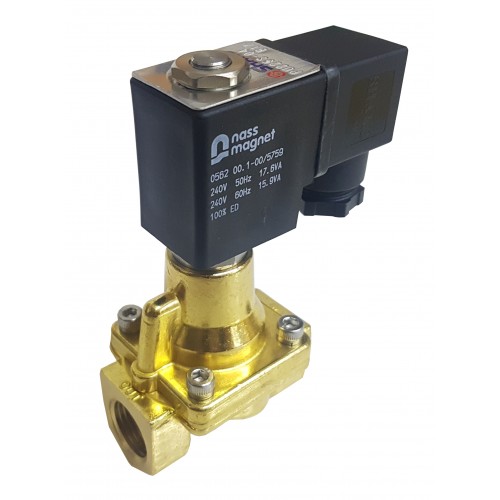

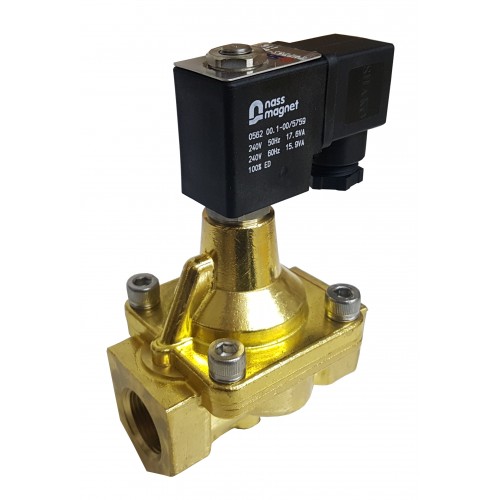

Steam Solenoid Valve 2/2 Way
Shako PU225S-03-04-06-08

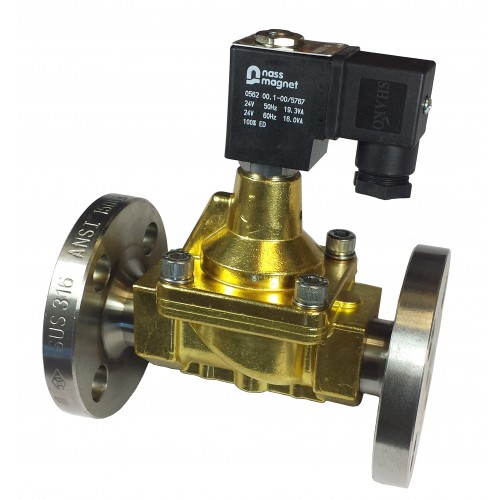

- Port thread 3/8, 1/2, 3/4, 1" BSP, NPT or Flange (F) JIS10K, (F3) ANSI150Lb, (F4) PN16.
- Pressure 0.5 to 10 Bar steam 185C, tested to 15 Bar.
- Pilot acting for low starting pressure.
- Function 2/2 way normally closed. (failsafe closed)
- Large flow rate.
- Strong stainless steel piston and graphite impregnated PTFE seals.
- Quick response.
- IP65 Class H DIN43650A 100% duty rated coil, option ATEX EExmIIT4 Ex-proof coil.
- Body brass, seals PTFE with graphite, internals and piston stainless steel.
- Voltage options 12vdc, 24vdc, 24vac, 110vac or 230vac, 48 volt, 380 volt or special voltage please contact us.
- View all steam valves here.
Shako 2/2 Steam Solenoid Valve PU225S03~08
- Brand: Shako
- Product Code: PU225S
- Availability: In Stock
-
£71.84
Available Options
Please Check Shako Data Sheet Tab for options
