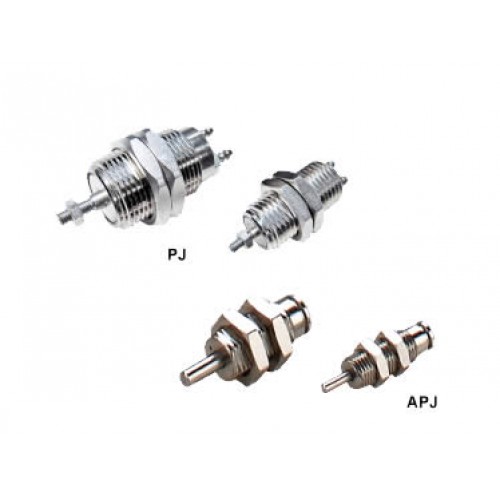

• PIN Cylinder PJ

Pneumatic PIN Cylinder

Shako PJ6-PJ10

  • Double acting (PJ) PIN cylinder.
  • Bore 6mm or 10mm
  • Stroke 5mm, 10mm or 15mm
  • Miniature compact size, short length, efficiently reduce installation space.
  • Full thread design on cylinder body, suitable for panel mounting and plug mounting.
  • Strong wear resistant bronze alloy construction.
  • Pressure 1.5 to 7 bar, except 10mm single acting (APJ10) 2.5 to 7 bar.
  • Without magnet.
  • Temperature range ambient -5C to +60C.
  • Piston speed between 50 and 500mm per second.


Write a review

Please login or register to review

PIN Cylinder PJ

  • Brand: Shako
  • Product Code: PJ6 PJ10
  • Availability: In Stock
  • £26.67


Available Options

Please Check Shako Data Sheet Tab for options
