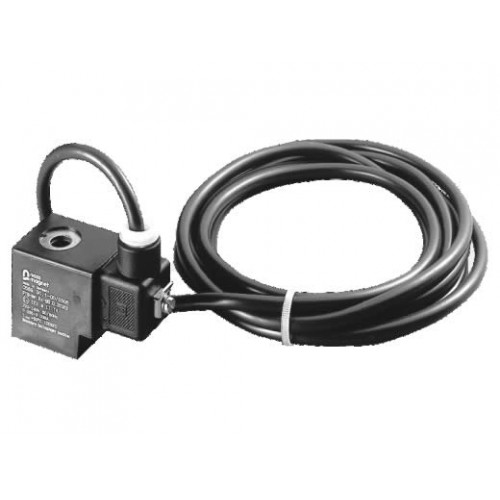

• Shako Solenoid Coil 40-17-04 ATEX

ATEX Solenoid Coil

Shako 40-17-04

  • ATEX certified solenoid coil GAS Ex II 2 G Ex mb IIC T4 and DUST Ex mb T4 IIIC T130C, hazardous area zones 21 and 22.
  • Width 36mm, bore 13mm thermoplastic
  • Rated power 8.5 to 9.1 Watts depending on voltage.
  • Protection by encapsulation, certificate PTB 03 ATEX 2086X, IECEx PTB05.0005X.
  • IP65 100% duty rated Class F according to DIN VDE0580
  • Cable length 3 meters, options 5 to 10 meters available  upon request.
  • Fits Shako solenoid valves PU220A, PU225A, SPU225A, SPU220, AM325, PU225S, PU225H and PU225X

    "Specification for Electronic Devices"DIN VDE 0580 or folder 1.4.0.0.

220vAC SA21336GT4N, 110vAC SA11336GT4N, 24vDC SD91336KT4N, 24vAC SA91336GT4N


Write a review

Please login or register to review

Shako Solenoid Coil 40-17-04 ATEX

  • Brand: Shako
  • Product Code: 40-17-04
  • Availability: In Stock
  • £60.00


Available Options

Please Check Shako Data Sheet Tab for options
