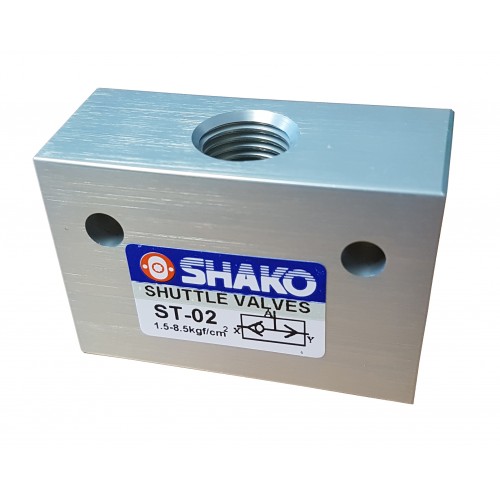

Shuttle & double pressure valve

Shako ST01-02 & STH-01

  • Port sizes 1/8 or 1/4" BSP, NPT or Rc thread.
  • ST shuttle valve or STH double pressure valve.
  • ST Internal check ball moves from high pressure inlet to low pressure inlet, with two inlet port supplies. (1/4 or 1/8).
  • STH internal check ball allows for double inlet pressure supply (1/8" only).
  • Aluminium alloy body.
  • Pressure 0.8 to 9.9 bar, test pressure 10 bar.
  • Large orifice high flow.
  • Temperature range ambient -10C to +80C.


Write a review

Please login or register to review

Shako shuttle valve

  • Brand: Shako
  • Product Code: ST STH
  • Availability: In Stock
  • £8.39


Available Options

Please Check Shako Data Sheet Tab for options
