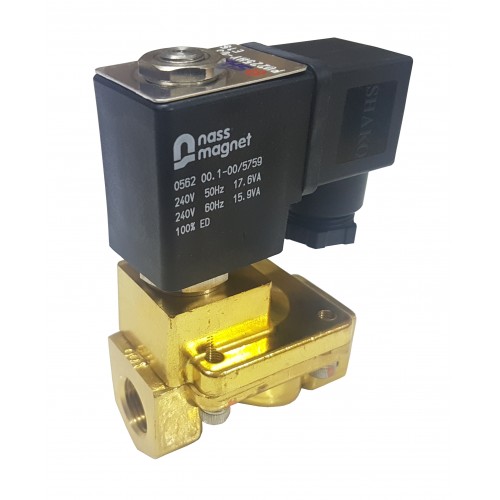

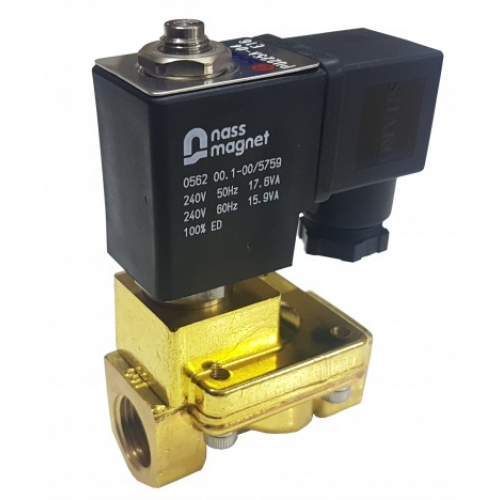

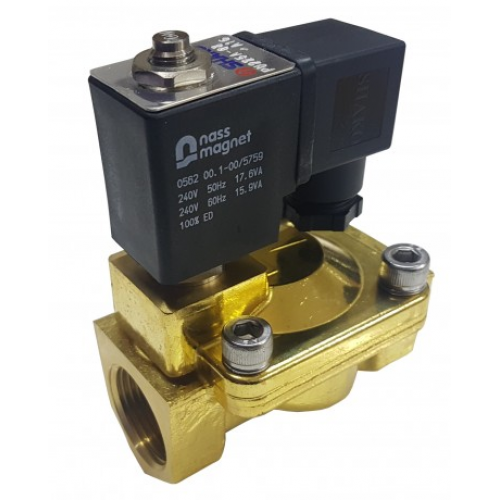

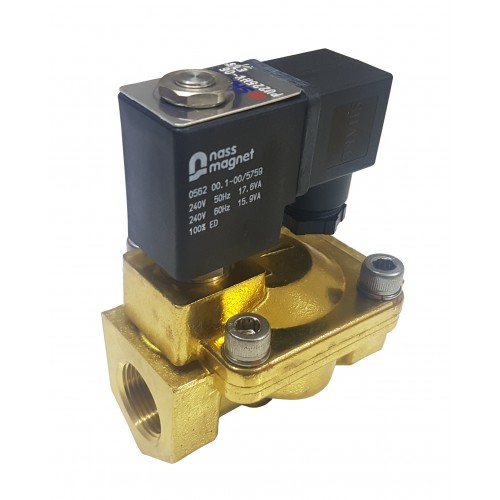

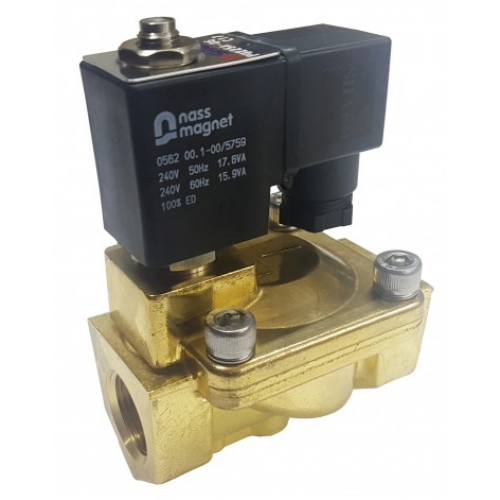

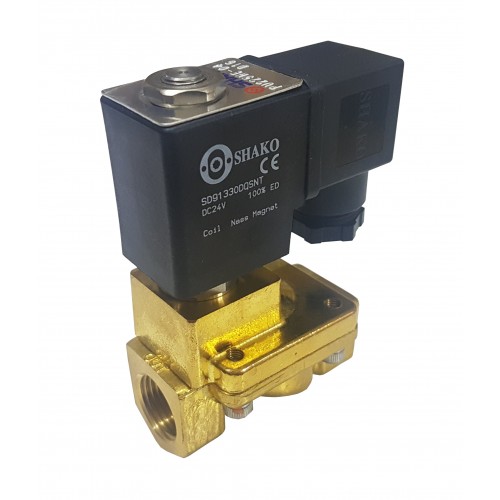

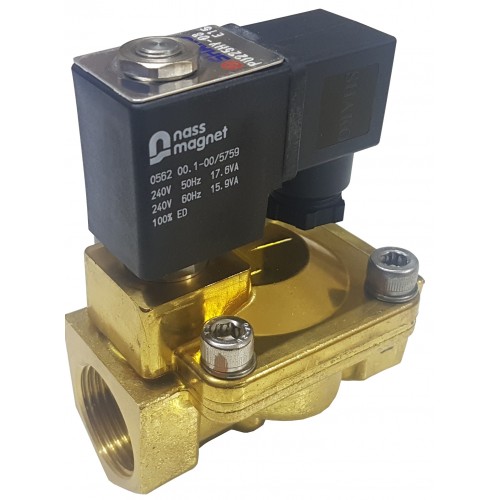

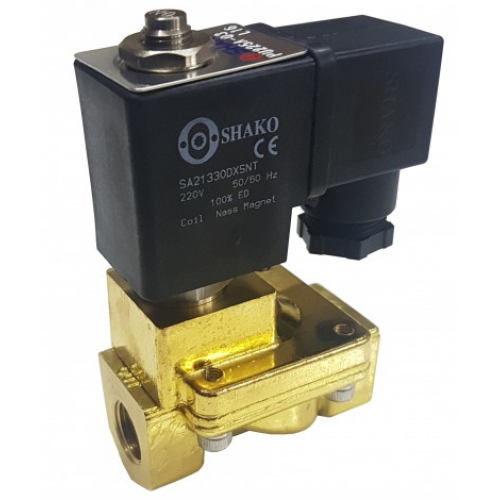

High Pressure Solenoid Valve 2/2 Way

Shako PU225H(N)-03-04-06-08

  • Port thread 3/8, 1/2, 3/4 or 1" BSP, NPT or flange (F) JIS10K, (F3) ANSI150Lb, (F4) PN16.
  • PU225H 2/2 way normally closed, PU225HN 2/2 way normally open.
  • Pressure 0.5 to 25 bar, test pressure 30 bar.
  • Sealing standard Viton, optional EPDM or NBR.
  • Pilot acting for low starting pressure.
  • Large flow rate and high working pressure.
  • Quick response.
  • Stainless steel stem provides exceptional durability.
  • Timer for setting on/off time as optional accessory
  • Sealing: NBR for air, water, gas and mineral oils, Viton for fuel oil, gasoline, diesel fuel or EPDM for hot water and detergents.
  • Temperature media -10C to +90C Maximum, ambient -10C to +60C.
  • Coil Class H DIN43650A 100% duty rated, most voltages available, optional ATEX Explosion proof coil EEx m II T4 coil.
  • Suitable media NBR air, water, gases or mineral oils (under 50 CST) - Viton Fuel oils, gasoline, hi-test gasoline, diesel fuels - EPDM hot water, liquid detergents.


Write a review

Please login or register to review

Shako 2/2 Solenoid Valve High Pressure PU225H

  • Brand: Shako
  • Product Code: PU225H
  • Availability: In Stock
  • £48.32


Available Options

Please Check Shako Data Sheet Tab for options
