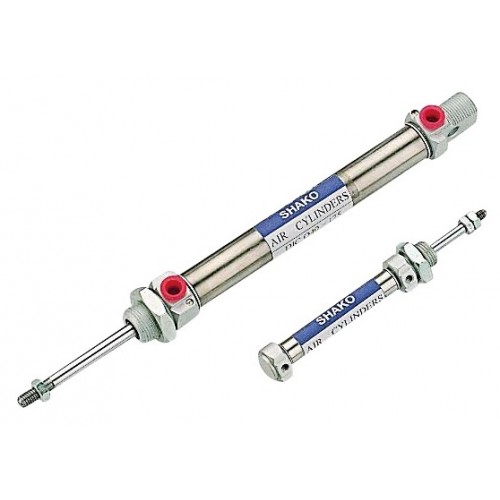

• Double Acting 16mm ISO6432 Miniature standard Cylinder PC16

Miniature Stainless Cylinder

Shako PC-16

  • ISO6432 Certified with 16mm bore.
  • Double acting with integrated clevis.
  • Stainless steel barrel.
  • Stroke 25mm to 500mm (longer by request).
  • Adjustable cushion at both ends is able to absorb vibration from high speed impact and provide stable movement.
  • Built in magnet for sensor use.
  • Caps are rolled and polished.
  • Stainless steel SUS304 barrel for stable movement.
  • High quality and durable life, corrosion resistant barrel and strong mechanical strength.
  • Double acting.
  • Option sensor with LED in front or on top.
  • Pressure range 1.5 to 8.5 bar,  maximum operating 9.5 bar.
  • Temperature range -5C to +60C
  • Piston speed 50 to 700mm.


Write a review

Please login or register to review

Double Acting 16mm ISO6432 Miniature standard Cylinder PC16

  • Brand: Shako
  • Product Code: PC-16
  • Availability: In Stock
  • £17.79


Available Options

Please Check Shako Data Sheet Tab for options
