Hand Control Valve 5/2 Way

Shako MSV8652-01 02

  • 5/2 way hand control air control valve.
  • Port sizes 1/8 or 1/4" BSP or NPT thread.
  • Pressure: 0 to 9 bar, test pressure 10 bar.

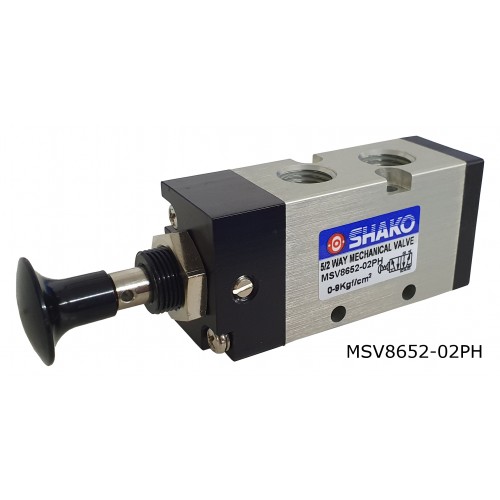

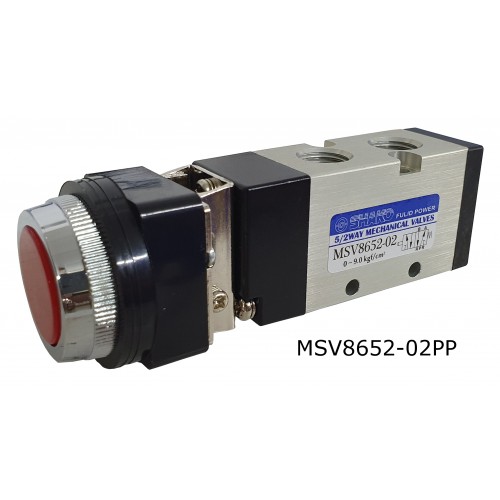

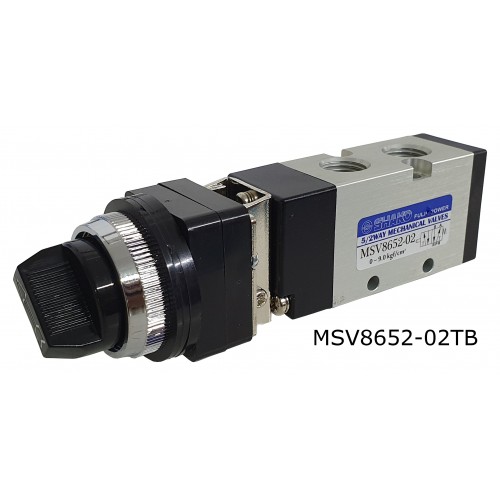

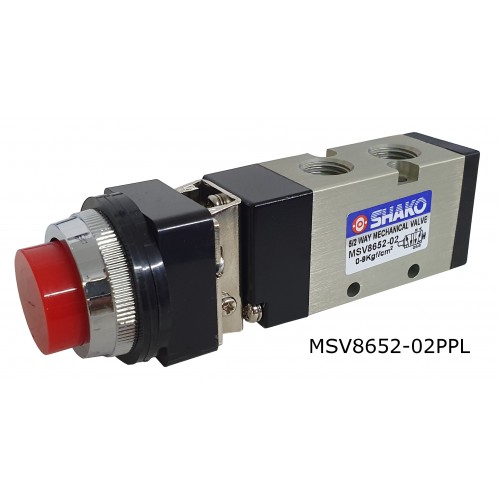

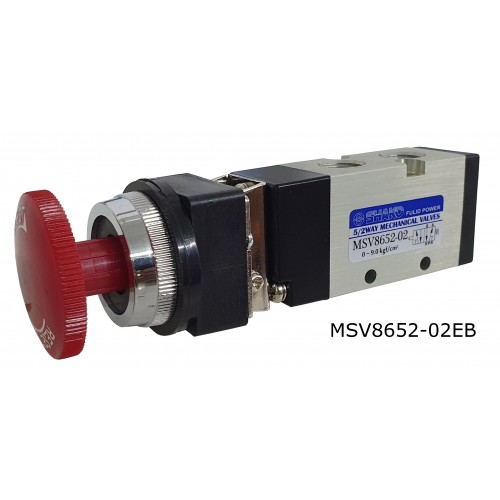

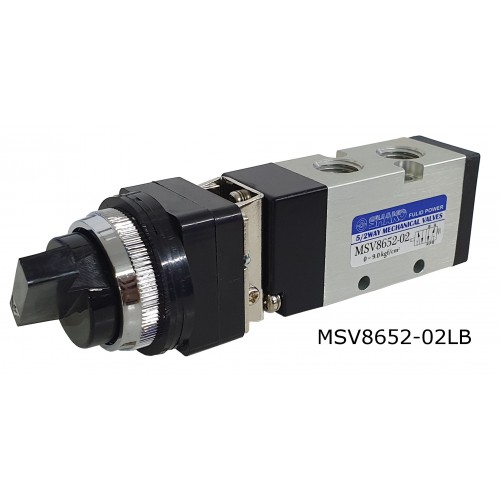

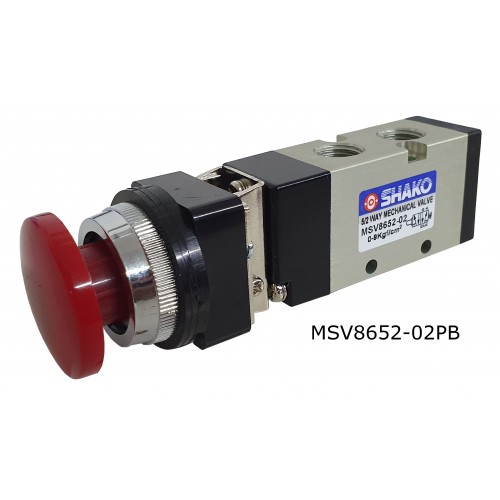

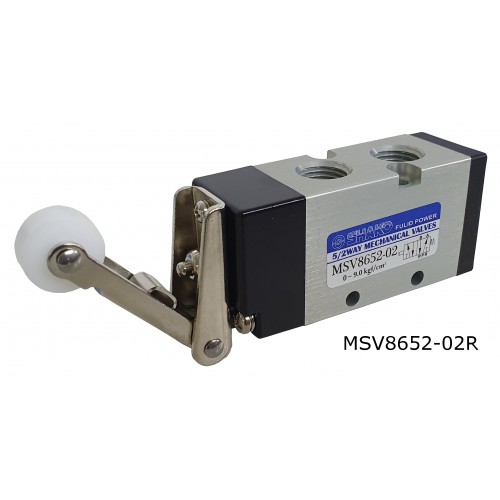

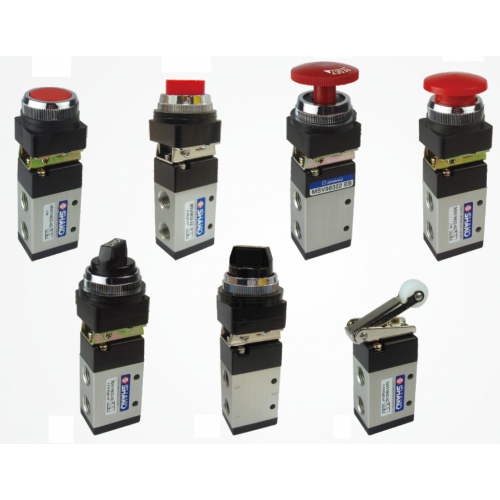

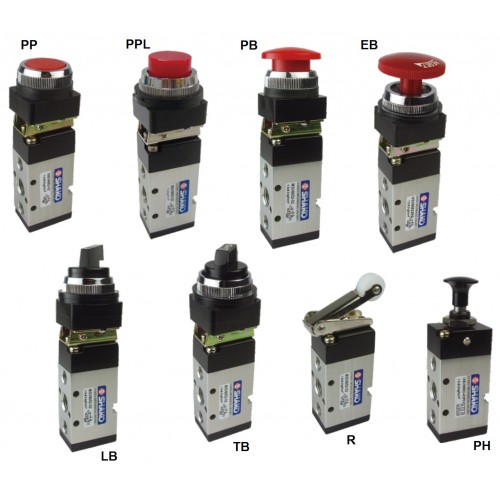

  • Operating styles, roller, twist selector, long twist selector, mushroom palm button, flush palm button, extended palm button, stop cock button or push pull button.
  • Panel mounting bore size φ30mm (Optionφ25mm).
  • Button colours, Black TB, LB, Red PB, PP, PPL and EB, option Green, black, yellow for PB, PP, PPL
  • Temperature ambient -10C to +60C.


Write a review

Please login or register to review

Shako 5/2 Hand Control Valves MSV8652

  • Brand: Shako
  • Product Code: MSV8652
  • Availability: In Stock
  • £26.74


Available Options

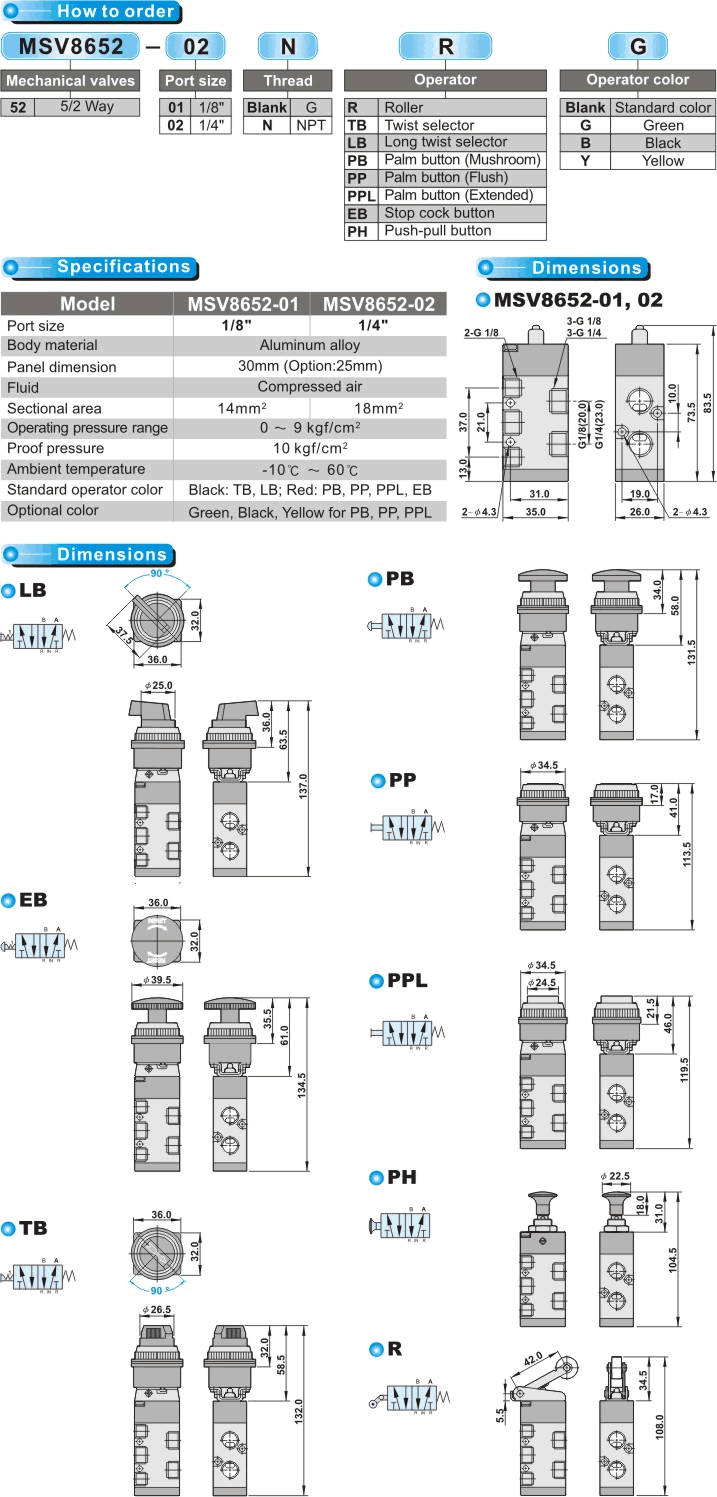

Please Check Shako Data Sheet Tab for options
